PRODUCTInfrared Image Scanner
IR SERIES

IR SERIES

Near-infrared image scanning made easy and precise.
A powerful tool for various types of analysis.

Application examples

| Inspection and quality control of certificated securities or other valuable documents printed using infrared ink.
| Determining letters on wooden tablets in archaeological bresearch.
| Identification of illegible trademark seals on Ise-Katagami dyeing stencils.
| Visualization of palm vein patterns.
| Deciphering letters on ancient memorial tablets at Shinto shrines and Buddhist temples and on Buddhist altars.
| Restoration of images on old and soiled photographic prints and glass plates. ...etc.

Click here for introduction results.

IR SERIES LIST

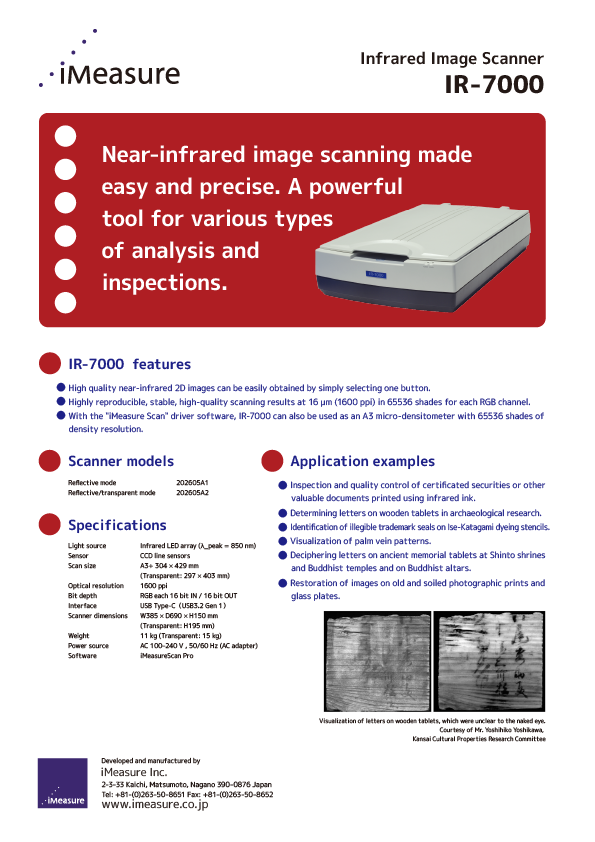

IR-7000 SPECIFICATIONS

Light source Infrared LED array (λ_peak = 850 nm)
Sensor CCD line sensors
Scan size A3+ 304 × 429 mm (Transparent: 297 × 403 mm)
Optical resolution 1600 ppi
Bit depth RGB each 16 bit IN / 16 bit OUT
Interface USB Type-C (USB3.2 Gen1)
Scanner dimensions W385 × D690 × H150 mm (Transparent: H195 mm)
Weight 11 kg (Transparent: 15 kg)
Power source AC 100–240 V , 50/60 Hz

IRGB-6500 / IR-6500 SPECIFICATIONS

Light source IRGB-6500: White LED array / Infrared LED Array (λ_peak = 850 nm)
IR-6500: Infrared LED array (λ_peak = 850 nm)
Sensor CCD line sensors
Scan size IRGB-6500 (201911A1): A3+ 310 × 437 mm (for all modes)
IRGB-6500 (201911A2): A3 310 × 420 mm (for all modes)
IR-6500: A3+ 310 × 437 mm (Transparent: 309 × 420 mm)
Optical resolution 2400 ppi
Bit depth RGB each 16 bit IN / 16 bit OUT
Interface Hi-Speed USB
Scanner dimensions W656 × D458 × H158 mm (Transparent: H190 mm)
Weight 15 kg (Transparent: 20 kg)
Power consumption IRGB-6500: 50 W (Transparent: 55 W)
IR-6500: 45 W (Transparent: 55 W)
Power source AC 100–240 V , 50/60 Hz
OS TWAIN

MODELS

Product name Scanner models features
IR

IR-7000

202605A1

Infrared Image Scanner, Reflective mode
IR

IR-7000

202605A2

Infrared Image Scanner, Reflective / transparent mode
IRGB

IRGB-6500

201911A1

White and infrared image scanner, Reflective mode
IRGB

IRGB-6500

201911A2

White and infrared image scanner, Reflective / transparent mode
IR

IR-6500

201803A1

Infrared Image Scanner, Reflective mode
IR

IR-6500

201803A2

Infrared Image Scanner, Reflective / transparent mode

*Please contact us for the main unit price.

OPTION / CUSTOMIZE

Product name Summary
Customize

Excitation / emission wavelength customization

The excitation wavelength and fluorescence wavelength can be customized by changing the transmission filter on the light source side, the cut filter on the sensor side, and the emission center wavelength of the light source. (Estimate separately for price and delivery date.)
Center wavelength range: 400nm-970nm
Half width: Approximately 30 nm
Option

iMeasure Scan(Drive software)

Images are captured with linear gamma (DENSITOMEATOR function). Images corresponding to the reflectance and transmittance of the DUT can be obtained in 16 bits. You can use the image scanner as a densitometer.
Option

Carrying case
Option model number:IR6KCC

Made of aluminum frame + FRP.

FEATURES

IRGB-6500 Features

014 in 1.

IR and full color images are captured at the same time, both in reflective and transparent modes.

02Equipped with dedicated software.

The original software captures 1.2 billion pixels (A3-2400 ppi) with a single scan.

03Built-in dual array light.

Built-in dual array light souce unit (both for white and IR) enables shadow-free scanning of 3D objects.

04Same scanning area for both reflective and transparent modes.

The same preview scan can be used for both modes.

05The scanner automatically adjusts for shifts in the focal point and magnification ratio.

The scanner automatically adjusts for shifts in the focal point and magnification ratio in the lens optics, based on the light source type (white or IR.)

06High-quality scanning.

Highly reproducible, stable, high-quality scanning results at 11 μm (2400 ppi) in 65536 shades for each RGB channel.

IR Series Features

01Near-infrared image scanning made easy and precise.

High quality near-infrared 2D images can be easily obtained by simply selecting one button.

02A scanner that can also serve as a densitometer.

With the "iMeasure Scan" driver software, can also be used as an A3 micro-densitometer with 65536 shades of density resolution.

APPLICATION EXAMPLES

  • Visualization of letters on wooden tablets, which were unclear to the naked eye.

    Visualization of letters on wooden tablets, which were unclear to the naked eye.

    SAMPLE

    Courtesy of Mr. Yoshihiko Yoshikawa, Kansai Cultural Properties Research Committee

  • Deciphering letters on ancient memorial tablets at Shinto shrines and Buddhist temples and on Buddhist altars.

    Deciphering letters on ancient memorial tablets at Shinto shrines and Buddhist temples and on Buddhist altars.

    SAMPLE

    Courtesy of Hiroshima Prefecture Kozan Town Board of Education

  • Visualization of palm vein patterns.

    Visualization of palm vein patterns.

    SAMPLE

  • Identification of trademark seals on Ise-katagami dyeing stencils.

    Identification of trademark seals on Ise-katagami dyeing stencils.

    SAMPLE

    Courtesy of Professor Masayo Inaba, Professor emeritus of Tokoha Gakuen Junior College

  • Outline trace

    Outline trace

    SAMPLE

  • Pencil drawing

    Pencil drawing

    SAMPLE

    Courtesy of Foundation, Yoshida-cho Regional Promotion Corporation (Yamaguchi Prefecture)

CATALOG

PRTIMES(Japanese)

4 Dec. 2019 IR / R / G / B Four channels on one scanner
