PRODUCTUV fluorescence image scanner
FLSCAN

FLSCAN

Fast High quality images A3-size For print quality control of fluorescent ink (stealth ink, invisible ink)

Application examples

| Inspection and quality control of printed matter and certificated securities printed using fluorescent ink (stealth ink, invisible ink.)
| Scanning fluorescent ink barcodes on mail.
| Identification of erased letters on parchment (palimpsest) in archeological research.
| Restoration of faded lettering that had been written with a highlighter pen. ....etc

Click here for introduction results.

FLSCAN SERIES LIST

SPECIFICATIONS

Light source UV LED array (λ_peak = 375 nm)
Sensor CCD line sensors
Scan size 12.2 × 16.6 inch (310 × 424 mm)
Optical resolution 2400 ppi
Bit depth RGB each 16 bit IN / 16 bit OUT
Interface Hi-Speed USB
Scanner dimensions W656 × D458 × H158 mm
Weight 15 kg
Power consumption 45 W
Power source AC 100–240 V , 50/60 Hz
OS TWAIN

MODEL

Product name Scanner models features
FLSCAN

FLSCAN-4

201804A1

Customization of excitation / emission wavelengths will be quoted separately.

OPTION / CUSTOMIZE

Product name Summary
Customize

Excitation / emission wavelength customization

The excitation wavelength and fluorescence wavelength can be customized by changing the transmission filter on the light source side, the cut filter on the sensor side, and the emission center wavelength of the light source. (Estimate separately for price and delivery date.)
Option

iMeasure Scan(Drive software)

Images are captured with linear gamma (DENSITOMEATOR function). Images corresponding to the reflectance and transmittance of the DUT can be obtained in 16 bits. You can use the image scanner as a densitometer.
Option

Carrying case
Option model number:IR6KCC

Made of aluminum frame + FRP.

FEATURES

01High quality images.

The shading correction function is useful for controlling the quality of the print density of fluorescent ink.
Images have a high resolution of 11 μm (2400 ppi) and a wide dynamic range of 65536 shades.

02No darkroom required.

Get high quality fluorescent images as casually as when using a photocopier.

03Maximum 256 scans.

Noise reduction by means of a maximum 256 scans. Detects weak fluorescence (using the driver software iMeasureScan Std (optional.))

APPLICATION EXAMPLES

  • Scanning fluorescent ink barcodes on mail.

    Scanning fluorescent ink barcodes on mail.

    SAMPLE

  • Identification of erased letters on parchment (palimpsest) in archeological research.

    Identification of erased letters on parchment (palimpsest) in archeological research.

    SAMPLE

    [Courtesy]
    Vatican Library: TOPPAN PRINTING CO., LTD.

  • Decoding old photos to visualize missing text.

    Decoding old photos to visualize missing text.

    BLOG

  • Restoration of faded lettering that had been written with a highlighter pen.

    Restoration of faded lettering that had been written with a highlighter pen.

    BLOG

    The wall newspaper "Fight Newspaper" was published by children in evacuation centers in Kesennuma City, Miyagi Prefecture after the Great East Japan Earthquake, and encouraged the victims.

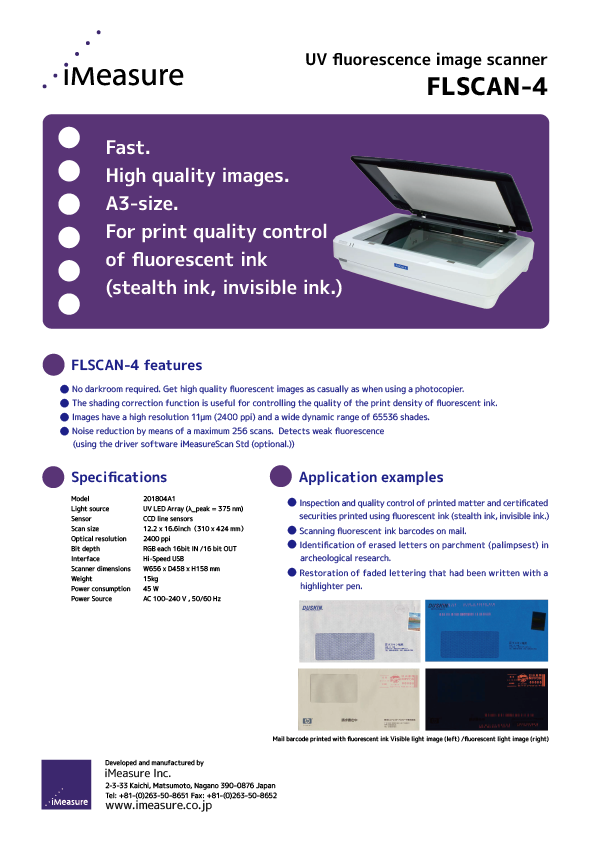

CATALOG
